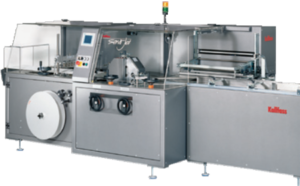

SERVO JET 500
Fully-Automatic, Continuous-Motion Side-Sealer
Servo Jet 500
Smart Technology for more flexibility
Continuous motion side sealers for reliable and troublefree high-performance packaging. The innovative linkage of decentralized servo drives with a PC-based ELAU MAX 4 (Gen 3) control system results in high performance with an attractive pricing.
The decentralized and expandable system structure of the controller manages all programmable logic controller (PLC) functions as well as all movements in the machine with extreme precision and reliability. In conjunction with servo drive systems, this perfected PC-based technology provides highest flexibility for fast, smooth and high-quality wrapping of products. The processing speeds are considerably higher than those of traditional programmable logic controller (PLC).
Facts, Data, Figures
| Technical Data | |
|---|---|
| Min./max. product length: | 3 in. / upon request |
| Min./max. product width: | 2 in. / 16 in. |
| Sealing systems (cross-sealer): | Special coating, permanently heated, maintenance free, fast and easy exchangeable sealing ledge in different profiles for high-quality seals |
| Width of cross-seal bar: | 22 in. |
| Max. clearance height of cross-sealer: | max. 8 in. |
| Operator interface: | colour Touchpanel |
| Control system: | PacDrive™ – with decentralized servo drives |
| Variable speed transport conveyor: | Up to 35 m/min. by the means of servo drives and frequency transformers |
| Film reel width:: | max. 24 in. (centre-folded film) optional also flat film |
| Film reel outside diameter: | max. 16in. |
| Min./max. width of film scrap: | .5 in. / 4 in. |
| Power supply: | 400 volts, 50 Hz, 3-phase, with protective earth conductor |
| Rated capacity: | max. 10 kVA |
| Nominal current (at 400 V): | 14,5 A |
| Working height | 33 (adjustable ± 2 in.) |
| Position of control panel and operating side: | Left hand side in working direction |
| Position of control cabinet: | Right hand side in working direction (rear side of machine) |
| Colour: | Kallfass anthracite |
| Your benefits by using our innovative technology: |
|---|
| Travelling cross-sealing system |
| Continuous side-sealing system |
| PacDrive™ from ELAU |
| operator interface and error diagnostic by colour Touchpanel (available languages: German, English, French) incl. Product Data Memory for various products |
| Compressed air not require |
Machine dimensions (approx. in mm):
(This drawing may show options which are not included in the basic machine version and are available against up-charge only.)
