Delivering Strong Shrink Results in Polyethylene Applications

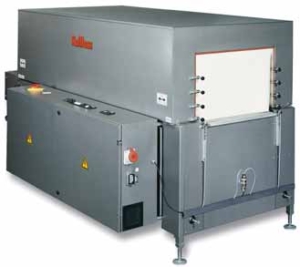

The Universal N and HV shrink tunnels are perfect for All Polyethylene applications. These models are ideal for fully-automatic sleeve wrappers such as the Kallfass SW 500, SW 650/950 IL as well as the SW 500/800 Servo.
The Universal tunnels have high capacity heating systems which provide outstanding shrink results. Adjustable registers on both sides and bottom allow for fine-tuning of the airflow for all sizes of products. Variable speed blower and speed controls are also standard.
The Universal HV tunnels offer an additional complete fusion seal when used with sleeve wrappers. This patented technology allows for completely enclosed packages to be produced inside the shrink tunnel. Compressed air is used to overlap the 2 film layers on both sides. Heated air from the bottom and sides heats and shrink films.
This technology offers up to 15% film savings over other competitors using side seal stations or tuck and fold units to close the sides of the product. Dual layer tunnel chambers offer extremely high insulation and energy savings over single layer tunnel chambers.
Facts, Data, Figures
| Technical data | Universal 650 N + HV | Universal 950 N + HV |
|---|---|---|
| Tunnel clearance in width: | 25 in. | 37 in. |
| Tunnel clearance in height, fix: | 16 in. | 20 in. |
| Length of heated tunnel hood: | 67 in. | 67 in. |
| Length of the additional insulation hood: | 2200 HV only | 2200 HV only |
| Extended tunnel outfeed: | 24 in. | 24 in. |
| Working height, adjustable: | 31.5” - 35.5” | 31.5” - 35.5” |
| Product transport, rod chain conveyor with silicone coated rods, gaping between rods 1 in.: | 112 in. | 3/4 in. |
| Transport conveyor, speed variable, mechanically adjustable: | 30 - 115 feet/min | 30 - 115 feet/min |
| Drive, three-phase gear motor: | 0.37 KVA | 0.37 KVA |
| Heater blower capacity: | variable mittels Frequenzumformer | variable mittels Frequenzumformer |
| Air flow regulation: | sliding registers at the bottom and the sides adjustable from the outside the tunnel hood | |
| Temperature control by means of electronic thrmostat: | switching precision = 0±2 ℃ | switching precision = 0±2 ℃ |
| Power supply with protective earth conductor: | 480V, 60HZ | 480V, 60HZ |
| Heating capacit, installed (consumption in continuous operation approx. 40%): | 30 KVA | 36 KVA |
| rated capacity: | 32 kVA | 38.5 A |
| Nominal current at 400 V (in-single phase operation): | 46 A | 56 A |
| Max: total connected load; incl. add. three phase power supply | 62 A | 72 A |
| Position of control cabinet and operating side: | left hand side in working direction | left hand side in working direction |
| Compressed air supply: | 6 bar, dry air HV only | 6 bar, dry air HV only |
| Colour: | KALLFASS - Anthracite | KALLFASS - Anthracite |
| Additional thermal insulation of the electrical cabinet: HV only | ||
| Film blow up system for 3 widths, each width can be turned on individually or in combination HV only | ||
| Wear resistant and contactless temperature control | ||
| Options at extra cost |
|---|
| Weekly program timer on/off automatic with acoustic start warning |
| Transfer rollers in the tunnel infeed |
| Machine on/off from packing machine with acoustic start warning |
| Plugs for power and signaling connection with up-stream machine |
| Cool-down automatic, activated by push button, heating will be switched off, tunnel transport and tunnel blower stay in operation |
| Transport monitoring system by means of contactless indicator direct at the transport, including emergency stop of the heating; with optical indication |
| Rod chain conveyor equipped with clutch and optical indication |
| Plastic -mesh-belt speed range approx. 10-115 feet/min. N only |
| special cooling blower above product outfeed |
| Special voltage (for standard voltage see technical data) |

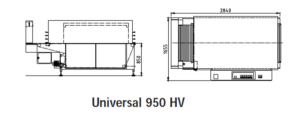

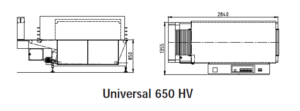

Machine dimensions (approx. in mm):
(This drawing may show options which are not included in the basic machine version and are available against up-charge only.)
