SUPER WRAP 500
Fully-automatic Sleevewrapper Bundling Machine
Super Wrap 500 Bundler

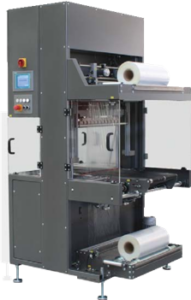

Super Wrap 500
High Volume Sleeve Wrapping in Tight Spaces:
The Super Wrap 500 sleeve wrapper was especially designed for the newspaper and printing industry. The new technology uses NO COMPRESSED AIR and allows the extremely small machine to wrap up to 35 stacks (14” high) per minute with top speeds of over 40 packs per minute. With a footprint of only 43” x 43”, this machine fits even in the tightest of spaces. The seal bar is Servo controlled (without mechanical brake) and guarantees smooth and low- wear operation.
Additional options like the twin side seal station are available for this modular machine. This way small bundles or single papers/magazines can be fully enclosed.
Specifications & Technical Data
| Technical Data | |
|---|---|
| film: | flat film, 60 gauge-3mil |
| outside diameter of film reel, max. | 16 in. |
| core diameter of film reel, approx: | 3 in. |
| width of film reel, max: | 21 in. top and bottom |
| clearance in width: | 20 in. |
| clearance in height, adjustable: | 16 in. |
| sealing system: | servo-controlled seal bar; permanently heated seal bar with exchangeable sealing ledge, maintenance free, with absolutely inodorous operation, temperature regulation by PLC |
| operator interface: | Touchpanel Siemens incl.Product Data Memory for various products |
| programmablelogic controller (PLC) | Siemens 57 |
| in-line transport conveyor: | length 24”, divided in 2 parts |
| discharge conveyor (outfeed area) | length 14”, divided in 2 parts |
| product length, min. approx | 5 in. |
| working height: adjustable | 32” – 36” |
| power supply | 208 -480V 60Hz, with ground |
| rated capacity: | 5.0 kVA |
| nominal current at 400 V: | 7.2 amps |
| operating side | left or right hand side in working direction (upon request) |
| color: | KALLFASS Anthracite |
| vacuum suction belt in the infeed and outfeed area |
| upper and lower film pre-dispensing for extremely light products |
| free rotating counter seal bar (without wear parts such as Teflon tape or Silicone) |
| fully-automatic product infeed by means of an in-line transport conveyor |
| seal bar equipped with electromechanic saftey device to protect sensitive products as well as for optimum operation saftey |
| operator guidance and error diagnostic by Touchpanel Siemens (available languages: German, English, French) incl. Product Data Memory for various products |
| programmable logic controller (PLC) type Siemens 57 |
| upper and lower film reel motor-driven |
| film tear and film control infintely adjustable speed of both transport conveyors by means of frequency |
| transformer, range of adjustment approx. 80-115 feet min. |
| working height adjustable extensive saftey guarding |
Additional components
Side sealing unit TWIN SEALER TS 500 for sidesealing single packs or minimum height newspaper stacks
Machine dimensions (approx. in mm):
(This drawing may show options which are not included in the basic machine version and are available against up-charge only.)
Industries We Serve
Our Products
FAQs on SUPER WRAP 500 Fully-automatic Sleevewrapper
What is the Kallfass Super Wrap 500?
The Super Wrap 500 is a fully automatic sleeve wrapper designed for high-volume packaging in limited spaces. It’s especially well-suited to the newspaper and printing industry. The machine runs without compressed air and can handle up to 35 stacks (14 inches high) per minute, with peak speeds exceeding 40 packs per minute—all within a compact 43″ × 43″ footprint.
Which industries benefit most from the Super Wrap 500?
Although originally built with print and paper in mind, the Super Wrap 500 is flexible enough to serve a wide range of industries. These include food and bakeries, contract packaging, wood and furniture, cosmetics and pharmaceuticals, e-commerce, logistics, and even tire wrapping operations.
How compact is the Super Wrap 500?
The footprint is just 43″ × 43″ (around 1100 mm wide), making it an excellent choice for facilities where floor space is limited.
Does it require compressed air?
No. The Super Wrap 500 eliminates the need for compressed air, using servo-driven sealing technology instead.
What is its production speed?
Under normal conditions, the machine runs at up to 35 stacks per minute. When optimized, it can reach burst speeds of more than 40 packs per minute.
Can the Super Wrap 500 handle small or single-pack items?
Yes. By adding the Twin Sealer TS 500 option, the machine can side-seal smaller or single-pack items, creating a fully enclosed wrap and removing the need for additional strapping.
Which components contribute to its seamless operation?
Performance and reliability come from features such as a servo-controlled seal bar (no mechanical brake), Siemens touch panel with PLC automation and diagnostics, vacuum belts for product stability, motorized film dispensing, adjustable conveyor speeds, and a complete safety system.
Is it easy to integrate into existing production lines?
Integration is straightforward. The machine’s modular design, small footprint, servo technology, and Siemens control system with recipe memory allow it to fit easily into automated production workflows.
