UNIVERSA 500 Servo
Fully automatic, continuous motion side sealer
Universa 500 Servo Side Sealers
Universa 500 Servo

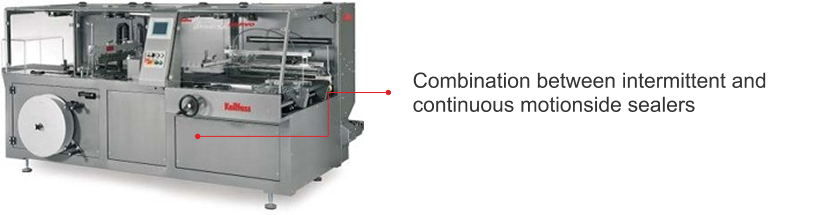

The Universa 500 Servo is a hybrid that closes the gab between intermittent motion and continuous motion side sealers. It is the first time that a single machine can offer combined advantages from both machine types. Perfect packaging results for highest requirements. High impact retail packaging for books, magazines,
chocolates, multimedia, industrial and high value products.
| Technical Specification | Universa 500 Servo |
|---|---|
| Transverse seal bar, length | 22 in. |
| Product clearance height | 8 in. |
| Power supply | 208 – 480 Volt |
| Film, centre-folded film | 30 gauge – 3 mil. |
| Transport speed | 16 – 115 feet / minute |
| Packaging capacity, max. | 120 cycles / minute |
Universa 500 Servo: Perfect packaging results for highest requirements. With 7“ widescreen Easy Touch-Panel.
Benefits & User Advantages
- Accurately dimensioned square bags due to distortion-free film
- Transport Vacuum and transport belt as optional feature
- Perfect packaging results for highest requirements
- High impact retail packaging for branches: Print and paper, sweets and confectionery, multimedia, technical products, and stacked products
- Traveling cross seal unit
- Integration into a production line is straightforward and simple
- Randomly spaced products of different lengths can be wrapped
- Almost effortless product changeover with only a few adjustments
Solution with Kallfass quality. Competence in the production of a wide range of products, from individual units to packaging systems to integration into production lines.
Industries We Serve
Our Products
FAQs on Universa 500 Servo Side Sealers
What is the Kallfass Universa 500 Servo continuous motion side sealer?
The Universa 500 Servo is a hybrid side-sealer that bridges the gap between intermittent-motion and continuous-motion machines, offering the speed of continuous packaging with the precision of intermittent systems. It delivers high-impact retail packaging for products like books, magazines, chocolates, software boxes, and industrial goods.
What are the technical specifications of the Universa 500 Servo?
- Transverse seal bar length: 22 inches
- Product clearance height: Up to 8 inches
- Power supply: 208–480 V
- Film compatibility: Center-folded film, 30 gauge to 3 mil
- Transport speed: 16–115 ft/min
- Max packaging capacity: 120 cycles per minute
What benefits does using the Universa 500 Servo offer?
- Produces distortion-free, geometrically precise square bags.
- Features a traveling cross-seal unit and optional vacuum-belt transport for flawless packaging.
- Easily integrates into existing production lines and accommodates randomly spaced or variably sized products with minimal changeover effort.
How fast can the Universa 500 Servo operate compared to other side sealers?
The Universa 500 Servo can package up to 120 cycles per minute, significantly faster than intermittent systems (~85 cycles/min). In some Kallfass continuous models, speeds can climb to 170 cycles per minute.
What film types are compatible with the Universa 500 Servo?
Accepts center-folded film ranging from 30 gauge to 3 mil. Kallfass also supports eco-friendly options like biodegradable films (e.g., PLA), enabling sustainable packaging practices.
Is the Universa 500 Servo easy to operate and maintain?
Yes. It features a 7″ widescreen Easy Touch-Panel for intuitive control. Integration is straightforward, and product changeovers require only minimal adjustment—thanks to its user-centric design.
Can the Universa 500 Servo work with different product sizes and irregular spacing?
Absolutely. It handles randomly spaced products of various lengths and ensures consistent, distortion-free sealing—without needing downtime or mechanical stops.
What makes it stand out compared to other continuous side sealers?
- It uniquely blends intermittent and continuous motion advantages.
- Supports precise square bag formation via vacuum transport.
- Simple changeover, easy integration, and high throughput elevate it above competitors.
Plus, trusted Kallfass expertise underpins its reliability.
