KC 5040/450 UNIVERSAL
Compact L-sealer with shrink tunnel
KC 5040/450 Universal Automatic Side Sealer
KC 5040/450 Universal
The compact L-sealer KC 5040/450 in combination with high performance shrink tunnel. The qualities of this series of machines become evident when subjected to hard, continuous use. Products such as for example printed material, sets of glassware or oil containers can all be packed quickly and economically whilst maintaining a high quality.
| Technical specifications | KC 5040/450 Universal |
|---|---|
| Transverse seal bar, length | 16 in. |
| Product clearance height | 8 in |
| Power supply | 208 - 480 volt |
| Film, center-folded film | 30 gauge - 3 mil. |
| Transport speed | 8 - 39 feet / minute |
| Packaging capacity, max. | 20 cycles / minute |

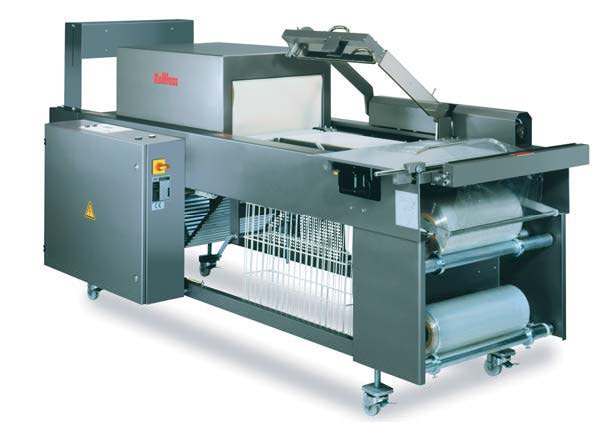

The figure may show optional equipment, ordered separately
Sovereign and reliable. First L-sealer with PLC SIMATIC S7-1200.
Benefits & User Advantages
- Economical packaging of a wide range of products
- Effective and absolutely inodorous mode of operation with proven impulse sealing technology using teflonised sealing and cutting wire
- Electromagnetically operated hooks to apply constant pressure during the sealing cycle
- Precise cycle time achieved by PLC SIMATIC S7-1200
- Trouble-free sealing and cutting, even with thicker films through defined contact pressure
- Also with plastic mesh belt available
- T-wire-sealing for thick PE-Film 60μm and upwards
Solution based on Kallfass quality. Competence in the production of a wide range of packaging machines from customer taylored systems to packaging systems for integration into production lines.
Industries We Serve
Our Products
Frequently Asked Questions
What is the KC 5040‑450 Universal and what is it used for?
The KC 5040‑450 Universal is a compact, automatic side sealing machine that works with shrink tunnels to wrap products efficiently and neatly. It’s perfect for manufacturers or packagers who want reliable, professional-looking packaging for a variety of items like printed materials, sets of glassware, consumer goods, or containers without investing in high-speed continuous systems.
How does the KC 5040‑450 Universal work?
The machine uses impulse sealing technology to wrap shrink film around each product. As a product moves into position, the sealer briefly pauses while the bars heat and cut the film, then sends it into the shrink tunnel to tighten. This stop-and-seal process ensures every package is precise, clean, and consistent.
What types of products can I package with the KC 5040‑450 Universal?
It’s a versatile machine that handles all kinds of moderately sized products. Whether you’re packaging books, consumer goods, glassware sets, or oil containers, this sealer keeps your items protected and looking professional.
What kind of shrink film does it use?
The KC 5040‑450 Universal works with center-folded shrink film, typically ranging from 30 gauge up to 3 mil. This gives you flexibility to choose the right film thickness and type depending on your product’s protection needs and appearance.
Can the KC 5040‑450 Universal fit into an existing packaging line?
Yes! Its compact design makes it easy to integrate with shrink tunnels and conveyors. You can upgrade your current line or add it to a new setup without major adjustments, keeping your workflow smooth and efficient.
How fast can the KC 5040‑450 Universal package products?
Speed depends on the product and the type of film, but typically it can handle up to around 20 packages per minute. It’s ideal for medium-volume production where consistent quality is more important than maximum speed.
What are the main benefits of using this side sealer?
The KC 5040‑450 Universal offers reliable sealing, odor-free impulse sealing, and consistent results even with thicker films. It’s economical, easy to operate, and built to run day after day, making it a dependable addition to any packaging line.
What maintenance does the KC 5040‑450 Universal need?
Maintenance is simple. Keep the sealing surfaces clean, check wear parts regularly, and follow the service schedule recommended by the manufacturer. Routine care helps the machine run smoothly, reduces downtime, and extends its lifespan.
