UNIVERSA 800
Fully-automatic side sealer

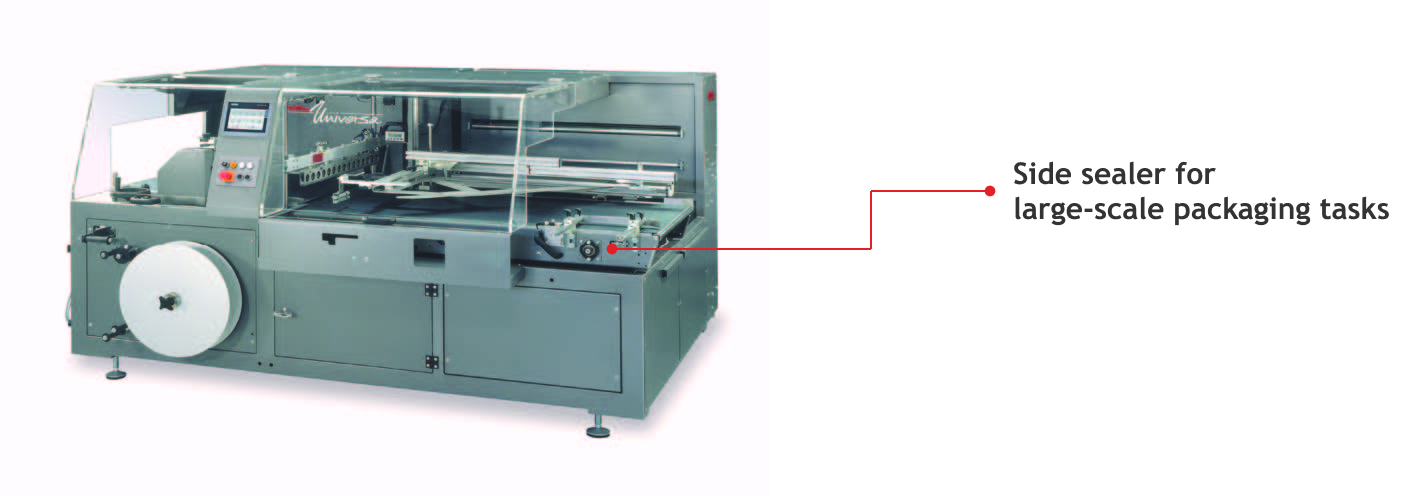

Universa 800 Automatic Side Sealer
Universa 800
Excellent economic performance has a name – Universa
The name of this universal film packaging machine represents both its underlying concept and its objective. Manufacturing companies with a broad product range and industrial services as well as contract packaging companies benefit greatly from the efficient production processes. Precise compliance of the bag length ensures a high standard of quality for the film packaging of large-scale products.
| Technical specifications | Universa 800 |
|---|---|
| Transverse seal bar, length | 33 in. |
| Seal bar clearance height | up to 12 in. |
| Power supply | 208 - 480 volt |
| Film, center-folded film | 60 gauge - 3 mil. |
| Transport speed | 33 - 115 feet / minute |
| Packaging capacity, max. | 65 cycles / minute |
The figure may show optional equipment, ordered separately

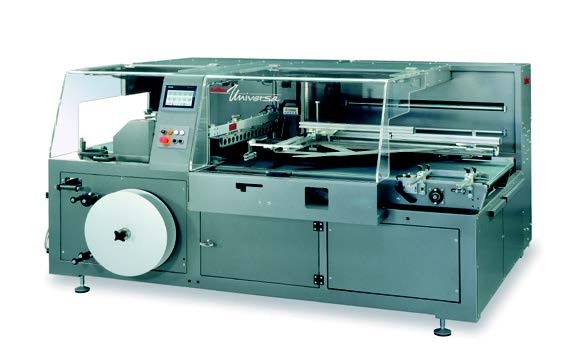

Universa 800: Powerful and efficient for large-scale products. The allrounder for your packaging application with new 7“ widescreen Easy Touch-Panel.
Benefits & User Advantages

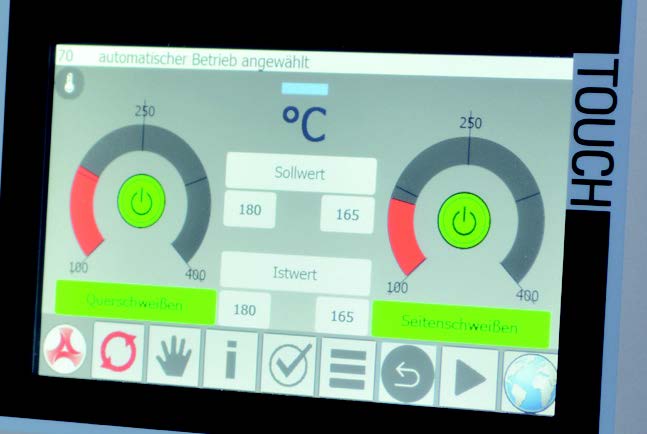

- New user interface: 7“ widescreen Easy Touch-Panel for easiest use for intuitive operator guidance. Redesigned graphic surface for perfect packaging results within the shortest time
- Perfect packaging results for small-format products with full-wrap packaging
- Low space requirements due to its compact design
- Easy integration of the system into existing production lines
- Kallfass product path control for easy changes in format and speed
- Inlet conveyor can be extended for easy and quick threading of the film
- Continuously heated sealing die with replaceable sealing bar, available in various profile shapes for optimum sealing seams, customized to fit the product and film
Solution based on Kallfass quality. Competence in the production of a wide range of packaging machines from customer taylored systems to packaging systems for integration into production lines.
Industries We Serve
Our Products
Frequently Asked Questions
What is the Universa 800 used for?
The Universa 800 is an automatic intermittent side sealing machine designed to wrap products in shrink film with clean, consistent results. It’s commonly used by manufacturers and contract packagers who need dependable packaging for larger or bulkier products without moving to a continuous high-speed system.
How does the Universa 800 work?
The machine uses a stop-and-seal process. Each product moves into position, the conveyor briefly pauses, and the sealing bars close to form the package before advancing to the next item. This controlled movement helps ensure accurate seals and consistent packaging, even when product sizes vary.
What types of products can be packaged on the Universa 800?
The Universa 800 is well suited for packaging larger items such as printed materials, food products, consumer goods, and industrial components. It’s especially useful when products need full-wrap shrink packaging that looks professional and provides good protection during handling and transport.
What kind of shrink film can be used with the Universa 800?
The Universa 800 works with center-folded shrink films in a range of thicknesses, giving users flexibility to choose the right film for their product. This allows businesses to balance durability, appearance, and cost depending on their packaging needs.
Is the Universa 800 easy to operate?
Yes, the Universa 800 is designed to be easy for operators to use. The touchscreen control panel is intuitive and allows quick adjustments, making setup and changeovers simpler and reducing the learning curve for new operators.
How fast can the Universa 800 package products?
The Universa 800 is built for steady, reliable production rather than extreme speed. Actual output depends on product size and film type, but the machine delivers consistent throughput while maintaining high seal quality for medium-volume packaging lines.
Can the Universa 800 be added to an existing packaging line?
Yes, the Universa 800 is designed to integrate smoothly into existing packaging setups. It can be connected with upstream conveyors and downstream equipment such as shrink tunnels, helping businesses improve efficiency without major changes to their current line.
Why choose an intermittent side sealer like the Universa 800?
Intermittent side sealers offer better control over the sealing process, which is especially helpful when packaging products of different sizes. The Universa 800 helps reduce film waste, delivers consistent seals, and provides flexibility that continuous systems may not offer.
What maintenance does the Universa 800 require?
Maintenance for the Universa 800 is straightforward and includes regular cleaning of sealing components, checking wear parts, and following routine service recommendations. Keeping up with basic maintenance helps ensure reliable performance and a long machine life.
