COMPACT 650 SD
Energy-Saving Shrink Tunnel
Compact 650 SD
The compact shrink tunnel for small to medium formats.
The double-construction Kallfass ring-nozzle heating system, in the compact 47″ hood, targets the heat where it is needed. This ensures a perfect shrinking process with low energy use, which helps to save natural resources.
| Technical specifications | Compact 650 SD |
|---|---|
| Adjustable working height | 32 - 35 in. |
| Tunnel clearance width, height | 26 in., 8 in. |
| Length of the heated tunnel hood | 48 in. |
| Power supply | 208 - 480 Volt |
| Continuously adjustable temperature | up to 190°C / 375°F |
| Transport speed | 15 - 90 feet / minute |
| Installed heating capacity | 2 x 4,5 kW |

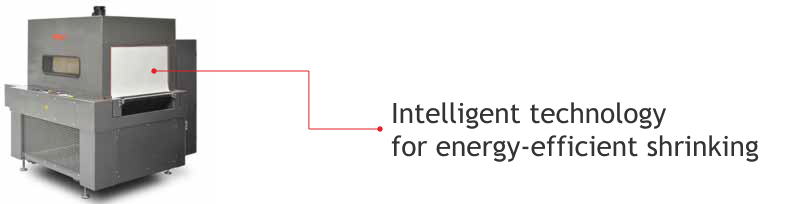

The figure may show optional equipment. Special paint and tunnel clearance height of 400 mm.

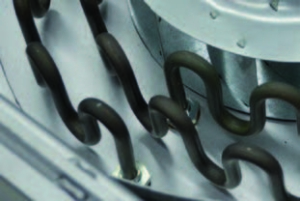

The ring-nozzle heating system ensures uniform heat transfer to the package contents.
Your benefits highlighted
- Perfect packaging results using constantly uniform heat energy transfer to the packaged goods, regardless of the position on the conveyor belt
- Ring nozzle heating technology with integrated air circulating system for efficient energy recovery
- High level of insulation and compact design ensure fast warm-up times
- Easy adjustment of basic parameters (temperature, air volume and package speed) using continuously adjustable controller
- Intelligent technology ensures constant temperature during operation. Energy-intensive temperature fluctuations are prevented
- Carefully selected components, easy to maintain, maintenance-free plastic mesh-belt
Solution in Kallfass quality. Competence in the production of a wide range of products, from individual units to packaging systems to integration into production lines.
